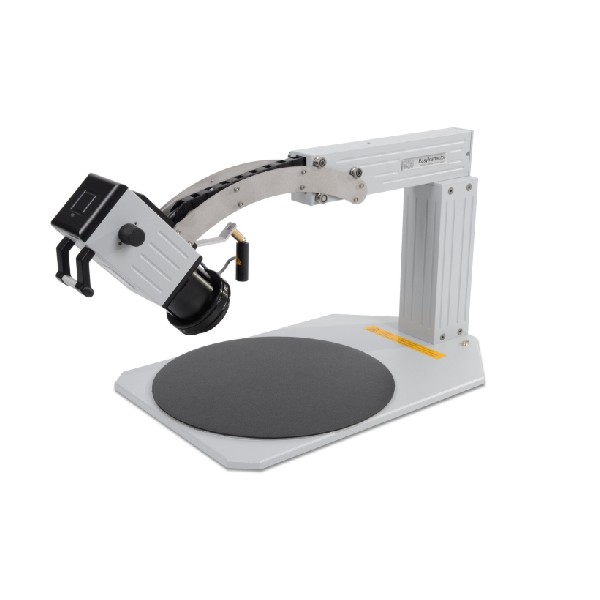

PCB Inspection - Easy Inspector

(0 Reviews)  review this item

Compact design, lightweight and easy handling
Ergonomic working position
HD resolution with 1920 x 1080 pixels
Camera tiltable 0° - 45°
Up 155x magnification (on 24" monitor)
Up to 30x optical zoom (depending on model)

FULL DETAILS SPECIFICATIONS MEDIA REVIEWS PEOPLE ALSO BOUGHT NEWS

The EasyInspector is a fully self-sustaining system for the visual inspection and consists of a high-resolution CCD-autofocus camera and a TFT screen.

The system is available as EasyInspector 10 with 10x optical zoom and as EasyInspector 20 with 20x optical zoom.
As of now, the EasyInspector is also available with a 30x optical zoom
One of its assets is that the user carries out the inspection in ergonomic working conditions.  Looking straight at the inspection objects on the screen and can thus always keep upright posture; and it is also possible for several people to look at the inspected object at the same time, e.g. to discuss abnormalities.

Another advantage is the autofocus sensor which makes focusing superflouos: the user simply zooms in or out; the viewing area always keeps in focus. The top plate rotates exactly around the optical axis and facilitates viewing the objects from different directions.
The camera can be tilted steplessly between 0° and 45°.
The LED ring light fitted at the camera provides the optimal illumination of the objects. On a respective screen the HD system shows the images in full HD resolution, i.e. with 30fps and 2 million pixels. When used with a suitable framegrabber supporting this format, the images can also be saved with the IMXpro software.
